VIVADO彈球游戲VGA顯示Verilog代碼EGO1開發板游戲

名稱：VIVADO彈球游戲VGA顯示Verilog代碼EGO1開發板游戲（代碼在文末下載）

軟件：VIVADO

語言：Verilog

代碼功能：

設計一個彈球游戲，并在VGA顯示器上顯示。

1、可以控制游戲開始，開始時數碼管顯示0分。

2、使用按鍵控制球拍的運動，當控制球拍接住球時，分?jǐn)?shù)加1。

3、彈球觸碰屏幕邊緣或者球拍時可以反彈。

4、當未成功接球時，游戲結束。

FPGA代碼Verilog/VHDL代碼資源下載：www.hdlcode.com

本代碼已在ego1開發板驗證，開發板如下，其他開發板可以修改管腳適配：

工程文件：

程序文件：

程序編譯：

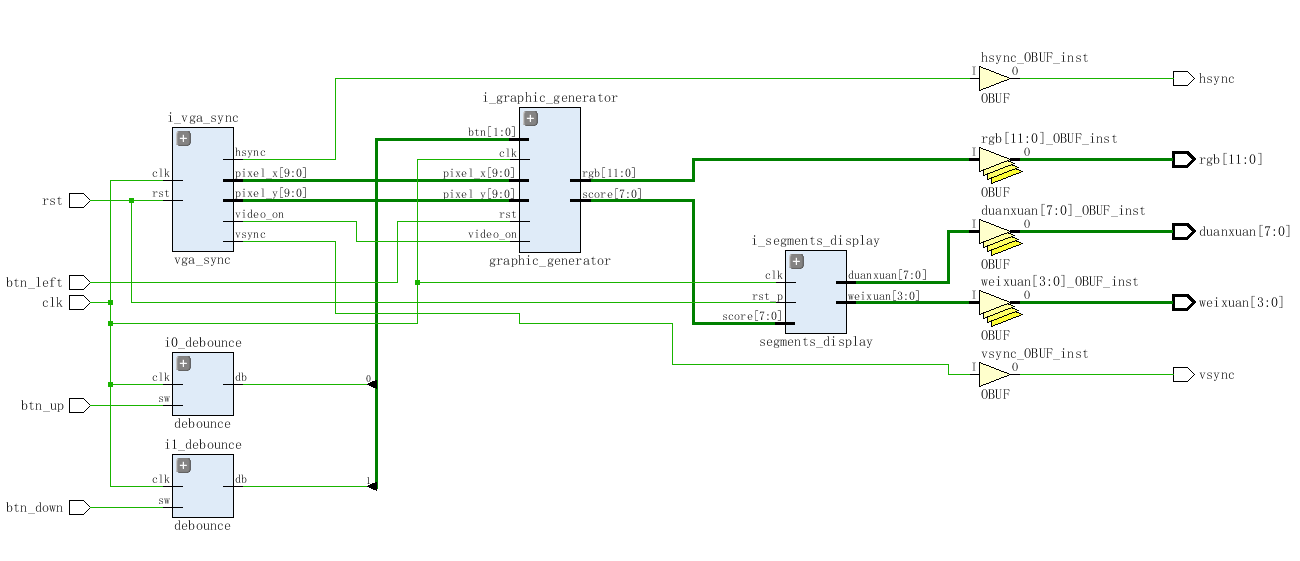

RTL圖：

管腳分配：

部分代碼展示:

`timescale?1ns?/?1ps
//產生墻、球和球拍
module?graphic_generator(clk,?rst,?btn,?pixel_x,?pixel_y,?video_on,?rgb,score);
???input????clk,?rst;?
???input????[1:0]?btn;?
???input????[9:0]?pixel_x,?pixel_y;?
???input????video_on;?
???
???output???[11:0]?rgb;?
???output?[7:0]?score;
???reg??????[11:0]?rgb;?
???
???wire?????refr_tick;?
???
???//?refr-tick:?1-clock?tick?asserted?at?st?art?of?v-sync
???//?i.e..?when?the?screen?is?refreshed?(60?Hz)
???assign?refr_tick?=?(pixel_y==481)?&&?(pixel_x==0);?
???//?==========================
???//?object?output?signals
???//?==========================
???
???wire?wall_on,?paddle_on,?ball_on;?
???wire?[11:0]?wall_rgb,?paddle_rgb,?ball_rgb;?
???
???always?@?(posedge?clk,?posedge?rst)?
??????if?(rst)?
?????????begin???
????????????paddle_y_reg?<=?0;?
????????????ball_x_reg???<=?0;?
????????????ball_y_reg???<=?0;?
????????????x_delta_reg??<=?10'h004;?
????????????y_delta_reg??<=?10'h004;?
?????????end
??????else?
?????????begin?
????????????paddle_y_reg?<=?paddle_y_next;?
????????????ball_x_reg???<=?ball_x_next;?
????????????ball_y_reg???<=?ball_y_next;?
????????????x_delta_reg??<=?x_delta_next;?
????????????y_delta_reg??<=?y_delta_next;?
?????????end?
?????????
???//?===============
???//?墻
???//?===============
???assign?wall_on??=?(pixel_x?>=?32)?&&?(pixel_x?<=?35);?
???assign?wall_rgb?=?12'hF00;??//?藍色
???
???//?===============
???//?球拍
???//?===============
???
???wire?[9:0]?paddle_y_t,?paddle_y_b;?
???//?register?to?track?top?boundary?(x?position?is?fixed)?
???reg?[9:0]?paddle_y_reg,?paddle_y_next;?
???assign?paddle_y_t?=?paddle_y_reg;?
???assign?paddle_y_b?=?paddle_y_t?+?72?-?1;?
???
???assign?paddle_on??=?(pixel_x?>=?600)?&&?(pixel_x?<=?603)?&&?
???????????????????????(pixel_y?>=?paddle_y_t)?&&?(pixel_y?<=?paddle_y_b);??//bar?top?and?bottom?barriers
???assign?paddle_rgb?=?12'h0F0;?//?綠色
???
???//?new?paddle?y-postion?
???always@?(*)?
???begin
??????paddle_y_next?=?paddle_y_reg;?
??????if?(refr_tick)
?????????if?(btn[1]?&?(paddle_y_b?<?(480?-?1?-?4)))?//maxy?-1-?(bar?moving?velocity)
????????????paddle_y_next?=?paddle_y_reg?+?4;??//?move?down?
?????????else?if?(btn[0]?&?(paddle_y_t?>?4))
????????????paddle_y_next?=?paddle_y_reg?-?4;??//?move?up?
???end?
???
???//?===============
???//?球
???//?===============
???
???//?ball?left,?right?boundary?
???wire?[9:0]?ball_x_l,?ball_x_r;?
???//?ball?tob,?bottom?boundary?
???wire?[9:0]?ball_y_t,?ball_y_b;??
???//?reg?to?track?left?,?top?position
???reg?[9:0]?ball_x_reg?,?ball_y_reg?;
???wire?[9:0]?ball_x_next?,?ball_y_next?;?
???//registers?to?track?ball?speed
???reg?[9:0]?x_delta_reg,?x_delta_next;?
???reg?[9:0]?y_delta_reg,?y_delta_next;?
???
???//boundary?
???assign?ball_x_l?=?ball_x_reg;?
???assign?ball_y_t?=?ball_y_reg;?
???assign?ball_x_r?=?ball_x_l?+?8?-?1;?
???assign?ball_y_b?=?ball_y_t?+?8?-?1;
???
???//pixel?within?ball?
???assign?ball_on?=?(pixel_x?>=?ball_x_l)?&&?(pixel_x?<=?ball_x_r)?&&?
????????????????????(pixel_y?>=?ball_y_t)?&&?(pixel_y?<=?ball_y_b);?
???assign?ball_rgb?=?12'hFF0;?//球色為紅綠混合色
??
??//?new?ball?position?
???assign?ball_x_next?=?(refr_tick)???ball_x_reg?+?x_delta_reg?:?ball_x_reg;?
???assign?ball_y_next?=?(refr_tick)???ball_y_reg?+?y_delta_reg?:?ball_y_reg;?
//???assign?ball_x_next?=?(refr_tick)???ball_x_reg?+?x_delta_reg?:?10'd0;?
//???assign?ball_y_next?=?(refr_tick)???ball_y_reg?+?y_delta_reg?:?10'd0;????
???//?new?ball?velocity?
???always?@?(*)?
???begin?
??????x_delta_next?=?x_delta_reg;?
??????y_delta_next?=?y_delta_reg;?
??????if?(ball_y_t?<?1)?//reach?top?
?????????y_delta_next?=?1;?
??????else?if?(ball_y_b?>?(480?-?1))?//?reach?bottom?
?????????y_delta_next?=?-1;?
??????else?if?(ball_x_l?<=?35)?//?reach?wall?
?????????x_delta_next?=?1;?//bounce?back?
??????else?if?((ball_x_r?>=?600)?&&?(ball_x_r?<=?603)?&&
???????????????(ball_y_b?>=?paddle_y_t)?&&?(ball_y_t?<=?paddle_y_b))
?????????//?reach?x?of?right?paddle?and?hit,?ball?bounces?back?
?????????x_delta_next?=?-1;?
???????else?if(ball_x_r>=610)begin//end?game
?????????x_delta_next?=?0;????
?????????y_delta_next?=?0;
?????????end
???end

點擊鏈接獲取代碼文件：http://www.hdlcode.com/index.php?m=home&c=View&a=index&aid=324
