汽車速度表設計AX301開發板驗證VHDL代碼

名稱：汽車速度表設計AX301開發板驗證VHDL代碼（代碼在文末下載）

軟件：QuartusII

語言：VHDL

代碼功能：

汽車速度表設計 設計一個汽車速度表。車輪每轉一圈會產生一個脈沖，每個脈沖代表1米的距離，根據單位時間的脈沖數可推算出汽車的速度。

要求:

(1)模擬產生車輪運轉產生的脈沖信號并對其計數,用按鍵選擇脈沖信號的不同。

(2)每隔10秒讀取一次脈沖計數器,并據此計算車速。

(3)用數碼管顯示車速,單位Km/h。

(4)給出超速警告。

FPGA代碼Verilog/VHDL代碼資源下載：www.hdlcode.com

本代碼已在AX301開發板驗證，開發板如下，其他開發板可以修改管腳適配：

演示視頻：

設計文檔：

1. 工程文件

2. 程序文件

3. 程序編譯

4. RTL圖

管腳

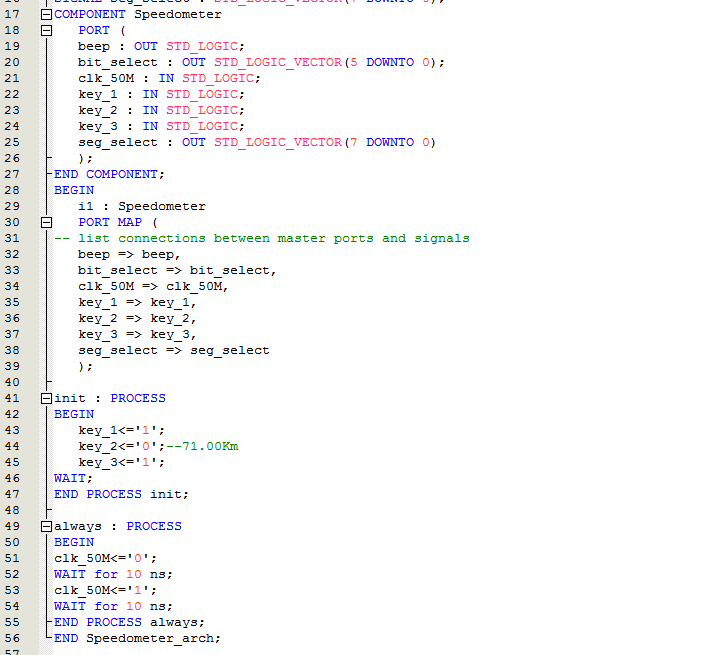

5. Testbench

6. 仿真圖

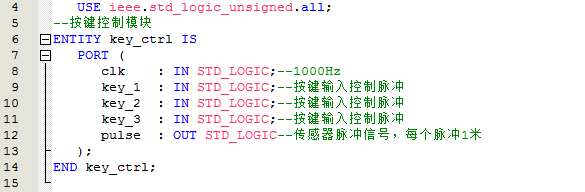

按鍵模塊

控制模塊

速度模塊

報警模塊

顯示模塊

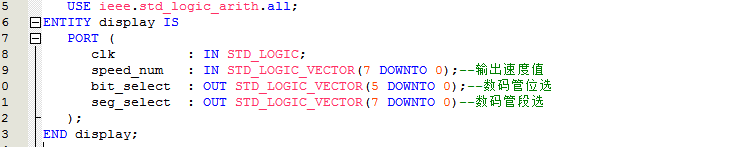

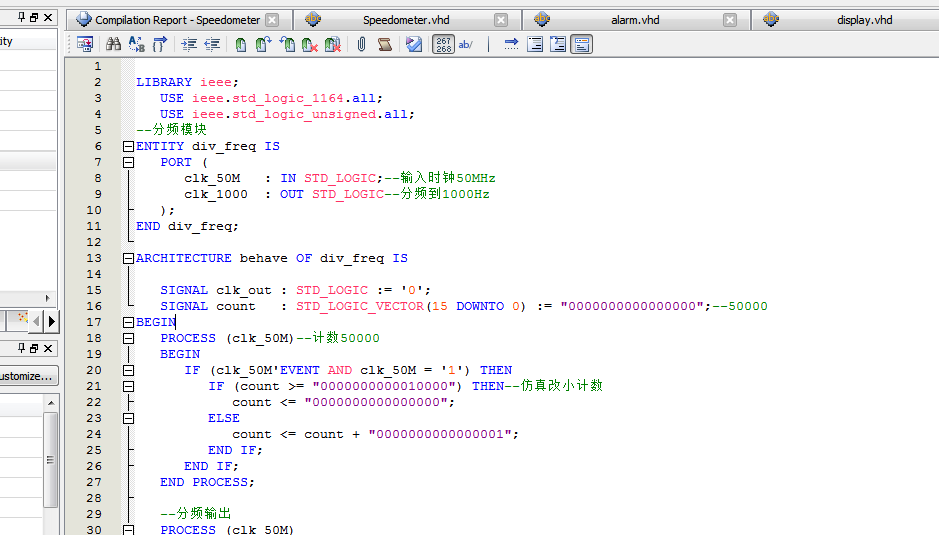

部分代碼展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
--汽車速度表
ENTITY?Speedometer?IS
???PORT?(
??????clk_50M?????:?IN?STD_LOGIC;--輸入時鐘50MHz
??????key_1??:?IN?STD_LOGIC;--按鍵輸入控制脈沖
key_2??:?IN?STD_LOGIC;--按鍵輸入控制脈沖
key_3??:?IN?STD_LOGIC;--按鍵輸入控制脈沖
??????beep????????:?OUT?STD_LOGIC;--超速報警指示燈
??????bit_select??:?OUT?STD_LOGIC_VECTOR(5?DOWNTO?0);--數碼管位選
??????seg_select??:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)--數碼管段選
???);
END?Speedometer;
ARCHITECTURE?behave?OF?Speedometer?IS
???COMPONENT?speed?IS
??????PORT?(
?????????clk?????????:?IN?STD_LOGIC;
?????????pulse???????:?IN?STD_LOGIC;
?????????clk_en??????:?IN?STD_LOGIC;
?????????latch???????:?IN?STD_LOGIC;
?????????rst?????????:?IN?STD_LOGIC;
?????????speed_num???:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)
??????);
???END?COMPONENT;
???
???COMPONENT?div_freq?IS
??????PORT?(
?????????clk_50M?????:?IN?STD_LOGIC;
?????????clk_1000????:?OUT?STD_LOGIC
??????);
???END?COMPONENT;
???
???COMPONENT?div?IS
??????PORT?(
?????????clk?????????:?IN?STD_LOGIC;
?????????clk_en??????:?OUT?STD_LOGIC;
?????????latch???????:?OUT?STD_LOGIC;
?????????rst?????????:?OUT?STD_LOGIC
??????);
???END?COMPONENT;
???
???COMPONENT?alarm?IS
??????PORT?(
?????????clk?????????:?IN?STD_LOGIC;
?????????beep????????:?OUT?STD_LOGIC;
?????????speed_num???:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0)
??????);
???END?COMPONENT;
???
???COMPONENT?key_ctrl?IS
??????PORT?(
?????????clk?????????:?IN?STD_LOGIC;
??????key_1??:?IN?STD_LOGIC;
key_2??:?IN?STD_LOGIC;
key_3??:?IN?STD_LOGIC;
?????????pulse???????:?OUT?STD_LOGIC
??????);
???END?COMPONENT;
COMPONENT?display?IS
???PORT?(
??????clk?????????:?IN?STD_LOGIC;
??????speed_num???:?IN?STD_LOGIC_VECTOR(7?DOWNTO?0);
??????bit_select??:?OUT?STD_LOGIC_VECTOR(5?DOWNTO?0);
??????seg_select??:?OUT?STD_LOGIC_VECTOR(7?DOWNTO?0)
???);
END?COMPONENT;
???
???
???SIGNAL?clk_en???????????:?STD_LOGIC;
???SIGNAL?latch????????????:?STD_LOGIC;
???SIGNAL?rst??????????????:?STD_LOGIC;
???SIGNAL?speed_num????????:?STD_LOGIC_VECTOR(7?DOWNTO?0);
???SIGNAL?pulse????????????:?STD_LOGIC;
???
???SIGNAL?clk??????????????:?STD_LOGIC;
BEGIN
--分頻模塊
???i_div_freq?:?div_freq
??????PORT?MAP?(
?????????clk_50M???=>?clk_50M,
?????????clk_1000??=>?clk
??????);
???
???--clk<=clk_50M;
???--按鍵控制脈沖輸出
???i_key_ctrl?:?key_ctrl
??????PORT?MAP?(
?????????clk????=>?clk,
?????????key_1??=>?key_1,
key_2??=>?key_2,
key_3??=>?key_3,
?????????pulse??=>?pulse
??????);
???
???
???--控制模塊，輸出控制信號
???i_div?:?div
??????PORT?MAP?(
?????????clk?????=>?clk,
?????????clk_en??=>?clk_en,
?????????latch???=>?latch,
?????????rst?????=>?rst
??????);
???
???
???--速度計算模塊
???i_speed?:?speed
??????PORT?MAP?(
?????????clk????????=>?clk,
?????????pulse??????=>?pulse,
?????????clk_en?????=>?clk_en,
?????????latch??????=>?latch,
?????????rst????????=>?rst,
?????????speed_num??=>?speed_num
??????);
???
???
???--數碼管顯示模塊
???i_display?:?display
??????PORT?MAP?(
?????????clk?????????=>?clk,
?????????speed_num???=>?speed_num,
?????????bit_select??=>?bit_select,
?????????seg_select??=>?seg_select
??????);
???
???
???--超速報警
???i_alarm?:?alarm
??????PORT?MAP?(
?????????clk????????=>?clk,
?????????beep???????=>?beep,
?????????speed_num??=>?speed_num
??????);
???
END?behave;

點擊鏈接獲取代碼文件：http://www.hdlcode.com/index.php?m=home&c=View&a=index&aid=274
