Quartus交通燈控制器VHDL代碼

名稱：Quartus交通燈控制器VHDL代碼

軟件：Quartus

語言：VHDL

代碼功能：交通燈

FPGA代碼Verilog/VHDL代碼資源下載：www.hdlcode.com

演示視頻：

設計文檔：

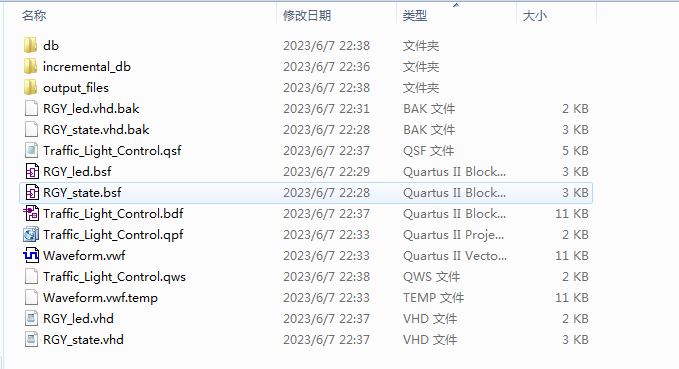

1. 工程文件

2. 程序文件

Bdf

Vhd

3. 程序編譯

4. RTL圖

5. 仿真圖

圖中，設置d1為15，d2為10，d3為5.即路口1綠燈為15秒，黃燈為5秒；路口2綠燈為10秒，黃燈為5秒。

圖中R1，G1，Y1分別表示路口1的紅、綠、黃燈。

圖中R2，G2，Y2分別表示路口2的紅、綠、黃燈。

可以看出，實現了路口1綠燈為15秒，黃燈為5秒；路口2綠燈為10秒，黃燈為5秒的功能

部分代碼展示:

LIBRARY?ieee;
???USE?ieee.std_logic_1164.all;
???USE?ieee.std_logic_unsigned.all;
--LED控制模塊
ENTITY?RGY_led?IS
???PORT?(
??????clk????:?IN?STD_LOGIC;
??state?????:?IN?STD_LOGIC_VECTOR(2?DOWNTO?0);--狀態機
??????R1???????:?OUT?STD_LOGIC;--紅綠燈信號
??????G1???????:?OUT?STD_LOGIC;--紅綠燈信號
??????Y1???????:?OUT?STD_LOGIC;--紅綠燈信號
??????R2???????:?OUT?STD_LOGIC;--紅綠燈信號
??????G2???????:?OUT?STD_LOGIC;--紅綠燈信號
??????Y2???????:?OUT?STD_LOGIC--紅綠燈信號
???);
END?RGY_led;
ARCHITECTURE?behave?OF?RGY_led?IS
???SIGNAL?R1_temp?:?STD_LOGIC:='0';
???SIGNAL?G1_temp?:?STD_LOGIC:='0';
???SIGNAL?Y1_temp?:?STD_LOGIC:='0';
???SIGNAL?R2_temp?:?STD_LOGIC:='0';
???SIGNAL?G2_temp?:?STD_LOGIC:='0';
???SIGNAL?Y2_temp?:?STD_LOGIC:='0';
BEGIN
???R1?<=?R1_temp;--紅
???G1?<=?G1_temp;--綠
???Y1?<=?Y1_temp;--黃
???R2?<=?R2_temp;--紅
???G2?<=?G2_temp;--綠
???Y2?<=?Y2_temp;--黃
???
?
???--控制東西方向交通燈
???PROCESS?(clk)
???BEGIN
??????IF?(clk'EVENT?AND?clk?=?'1')?THEN
?????????IF?(state?=?"001")?THEN
????????????G1_temp?<=?'1';
?????????ELSE
????????????G1_temp?<=?'0';
?????????END?IF;
?????????IF?(state?=?"010")?THEN
????????????Y1_temp?<=?'1';
?????????ELSE
????????????Y1_temp?<=?'0';
?????????END?IF;
?????????IF?(state?=?"011"?OR?state?=?"100")?THEN
????????????R1_temp?<=?'1';
?????????ELSE
????????????R1_temp?<=?'0';
?????????END?IF;
??????END?IF;
???END?PROCESS;
???
???--控制南北方向交通燈
???PROCESS?(clk)
???BEGIN
??????IF?(clk'EVENT?AND?clk?=?'1')?THEN
?????????IF?(state?=?"011")?THEN
????????????G2_temp?<=?'1';
?????????ELSE
????????????G2_temp?<=?'0';
?????????END?IF;
?????????IF?(state?=?"100"?)?THEN
????????????Y2_temp?<=?'1';
?????????ELSE
????????????Y2_temp?<=?'0';
?????????END?IF;
?????????IF?(state?=?"001"?OR?state?=?"010")?THEN
????????????R2_temp?<=?'1';
?????????ELSE
????????????R2_temp?<=?'0';
?????????END?IF;
??????END?IF;
???END?PROCESS;
???
?
END?behave;

點擊鏈接獲取代碼文件：http://www.hdlcode.com/index.php?m=home&c=View&a=index&aid=430
